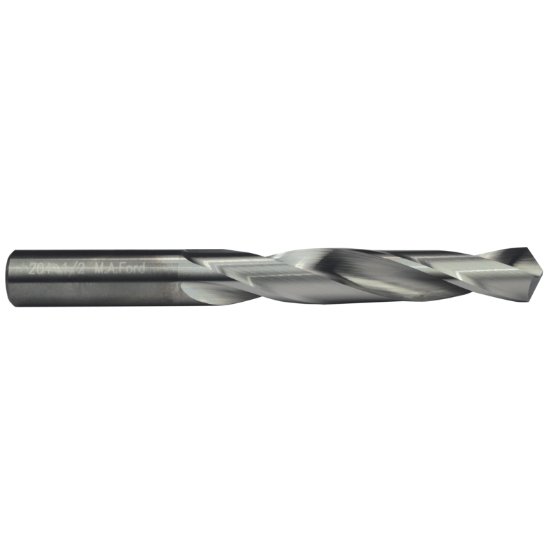

Picture of M.A. Ford 20459380 Carbide Drill Solid Carbide 118° 0.593 Dia 0.593 Shank 5.250 OAL 2 Flute 3.500 Flute Length Carbide

M.A. Ford 20459380 Carbide Drill Solid Carbide 118° 0.593 Dia 0.593 Shank 5.250 OAL 2 Flute 3.500 Flute Length Carbide

Part Number: MAF24832 ISO: 20459380

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115186
Vendor: Sussex Tool and Supply
$170.04
M.A. FORD 20459380 19/32 JOBBER DRILL Carbide Uncoated Twister® GP Flute 3.5000 88.90MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Mach Side Connection Size 0.5938 15.08MM
Overall Length 5.2500 133.35MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5938 15.08MM - 19/32
Flutes/Inserts 2
Tool Dia 0.5938 15.08MM - 19/32
Type Of Tool Drill
Included Angle 118°
Flute Length 3.5000 88.90MM
Cut Dia Min 0.5938 15.08MM - 19/32
Drill Length Type Jobber
