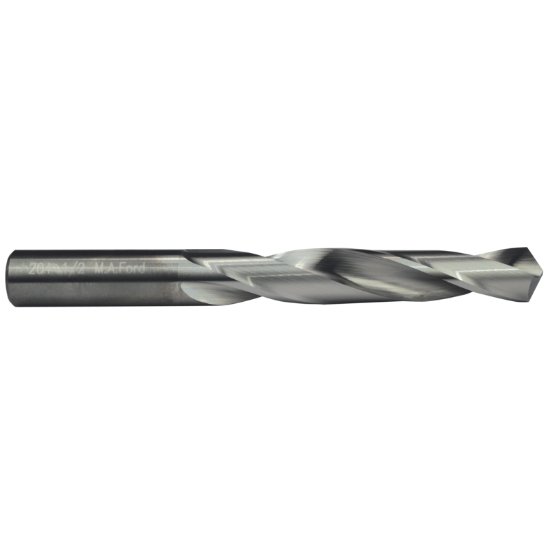

Picture of M.A. Ford 20454690 Carbide Drill Solid Carbide 118° 0.546 Dia 0.546 Shank 5.000 OAL 2 Flute 3.250 Flute Length Carbide

M.A. Ford 20454690 Carbide Drill Solid Carbide 118° 0.546 Dia 0.546 Shank 5.000 OAL 2 Flute 3.250 Flute Length Carbide

Part Number: MAF24814 ISO: 20454690

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115181
Vendor: Sussex Tool and Supply
$141.20
M.A. FORD 20454690 35/64 JOBBER DRILL Carbide Uncoated Twister® GP Flute 3.2500 82.55MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Mach Side Connection Size 0.5469 13.89MM
Overall Length 5.0000 127.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5469 13.89MM - 35/64
Flutes/Inserts 2
Tool Dia 0.5469 13.89MM - 35/64
Type Of Tool Drill
Included Angle 118°
Flute Length 3.2500 82.55MM
Cut Dia Min 0.5469 13.89MM - 35/64
Drill Length Type Jobber
