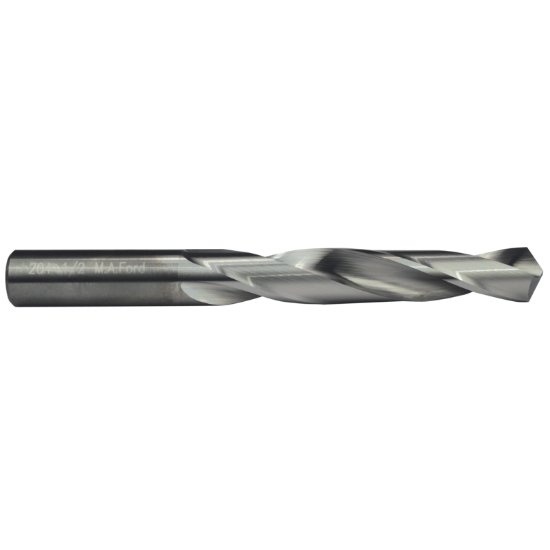

Picture of M.A. Ford 20453120T Carbide Drill Solid Carbide 118° 0.531 Dia 0.531 Shank 5.000 OAL 2 Flute 3.250 Flute Length Carbide TiN

M.A. Ford 20453120T Carbide Drill Solid Carbide 118° 0.531 Dia 0.531 Shank 5.000 OAL 2 Flute 3.250 Flute Length Carbide TiN

Part Number: MAF75157 ISO: 20453120T

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115180
Vendor: Sussex Tool and Supply
$149.31
M.A. FORD 20453120T TIN 17/32 JOBBER DRL Carbide TiN Twister® GP Flute 3.2500 82.55MM Carbide Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating TIN
Mach Side Connection Size 0.5313 13.50MM
Overall Length 5.0000 127.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5312 13.49MM - 17/32
Flutes/Inserts 2
Tool Dia 0.5313 13.50MM - 17/32
Type Of Tool Drill
Included Angle 118°
Flute Length 3.2500 82.55MM
Cut Dia Min 0.5312 13.49MM - 17/32
Drill Length Type Jobber
