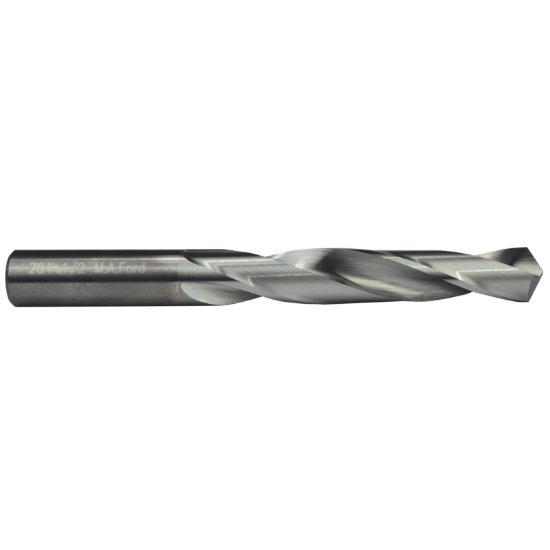

Picture of M.A. Ford 20453120A Carbide Drill Solid Carbide 118° 0.531 Dia 0.531 Shank 5.000 OAL 2 Flute 3.250 Flute Length Carbide AlTiN

M.A. Ford 20453120A Carbide Drill Solid Carbide 118° 0.531 Dia 0.531 Shank 5.000 OAL 2 Flute 3.250 Flute Length Carbide AlTiN

Part Number: MAF75156 ISO: 20453120A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115179
Vendor: Sussex Tool and Supply
$149.31
M.A. FORD 20453120A ALTIMA 17/32 JOBBER DRL Carbide AlTiN Twister® GP Flute 3.2500 82.55MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.5313 13.50MM
Overall Length 5.0000 127.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5312 13.49MM - 17/32
Flutes/Inserts 2
Tool Dia 0.5313 13.50MM - 17/32
Type Of Tool Drill
Included Angle 118°
Flute Length 3.2500 82.55MM
Cut Dia Min 0.5312 13.49MM - 17/32
Drill Length Type Jobber
