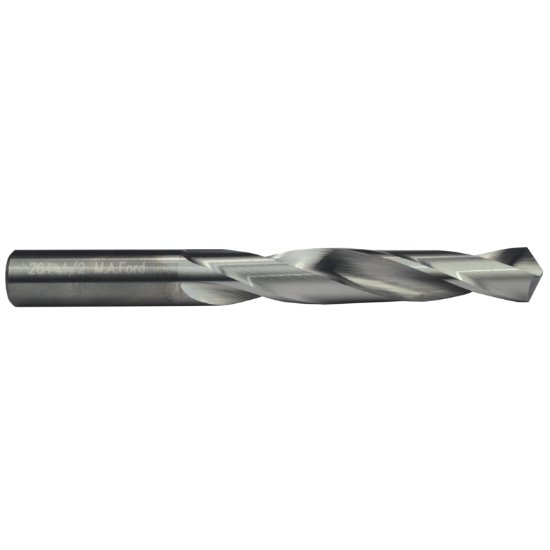

Picture of M.A. Ford 20450000T Carbide Drill Solid Carbide 118° 0.500 Dia 0.500 Shank 4.750 OAL 2 Flute 3.000 Flute Length Carbide TiN

M.A. Ford 20450000T Carbide Drill Solid Carbide 118° 0.500 Dia 0.500 Shank 4.750 OAL 2 Flute 3.000 Flute Length Carbide TiN

Part Number: MAF75154 ISO: 20450000T

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115175
Vendor: Sussex Tool and Supply
$131.87
M.A. FORD 20450000T 1/2 JOBBER DRL TIN COAT Carbide TiN Twister® GP Flute 3.0000 76.20MM Carbide Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating TIN
Mach Side Connection Size 0.5000 12.70MM
Overall Length 4.7500 120.65MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Type Of Tool Drill
Included Angle 118°
Flute Length 3.0000 76.20MM
Cut Dia Min 0.5000 12.70MM - 1/2
Drill Length Type Jobber
