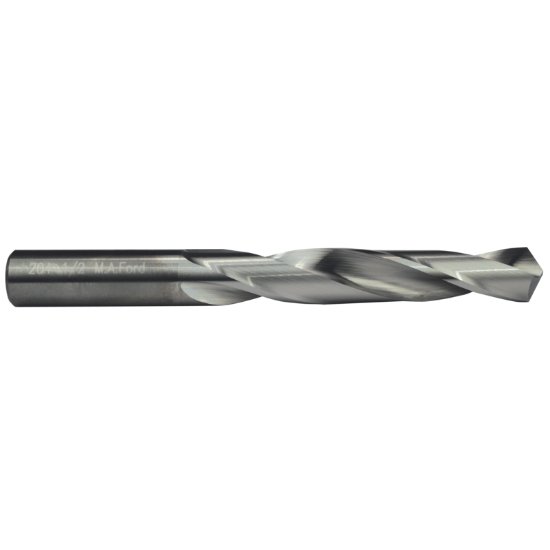

Picture of M.A. Ford 20446880T Carbide Drill Solid Carbide 118° 0.468 Dia 0.468 Shank 4.750 OAL 2 Flute 3.000 Flute Length Carbide TiN

M.A. Ford 20446880T Carbide Drill Solid Carbide 118° 0.468 Dia 0.468 Shank 4.750 OAL 2 Flute 3.000 Flute Length Carbide TiN

Part Number: MAF75153 ISO: 20446880T

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115172
Vendor: Sussex Tool and Supply
$124.67
M.A. FORD 20446880T 15/32 JOBBER DRL TIN Carbide TiN Twister® GP Flute 3.0000 76.20MM Carbide Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating TIN
Mach Side Connection Size 0.4688 11.91MM
Overall Length 4.7500 120.65MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4688 11.91MM - 15/32
Flutes/Inserts 2
Tool Dia 0.4688 11.91MM - 15/32
Type Of Tool Drill
Included Angle 118°
Flute Length 3.0000 76.20MM
Cut Dia Min 0.4688 11.91MM - 15/32
Drill Length Type Jobber
