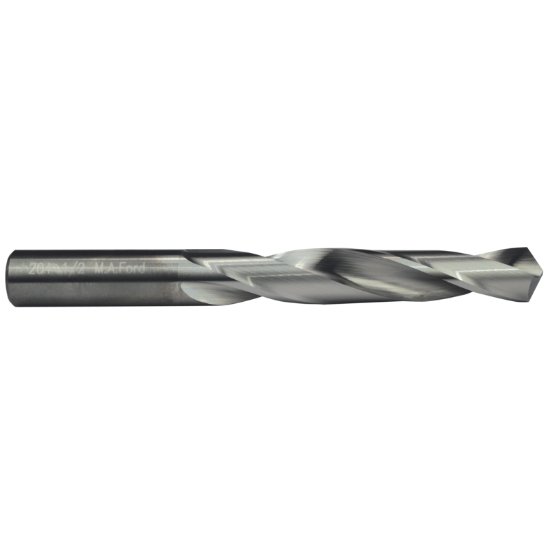

Picture of M.A. Ford 20443750T Carbide Drill Solid Carbide 118° 0.437 Dia 0.437 Shank 4.500 OAL 2 Flute 2.875 Flute Length Carbide TiN

M.A. Ford 20443750T Carbide Drill Solid Carbide 118° 0.437 Dia 0.437 Shank 4.500 OAL 2 Flute 2.875 Flute Length Carbide TiN

Part Number: MAF75151 ISO: 20443750T

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115168
Vendor: Sussex Tool and Supply
$106.88
M.A. FORD 20443750T 7/16 JOBBER DRL TIN Carbide TiN Twister® GP Flute 2.8750 73.03MM Carbide Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating TIN
Mach Side Connection Size 0.4375 11.11MM
Overall Length 4.5000 114.30MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Flutes/Inserts 2
Tool Dia 0.4375 11.11MM - 7/16
Type Of Tool Drill
Included Angle 118°
Flute Length 2.8750 73.03MM
Cut Dia Min 0.4375 11.11MM - 7/16
Drill Length Type Jobber
