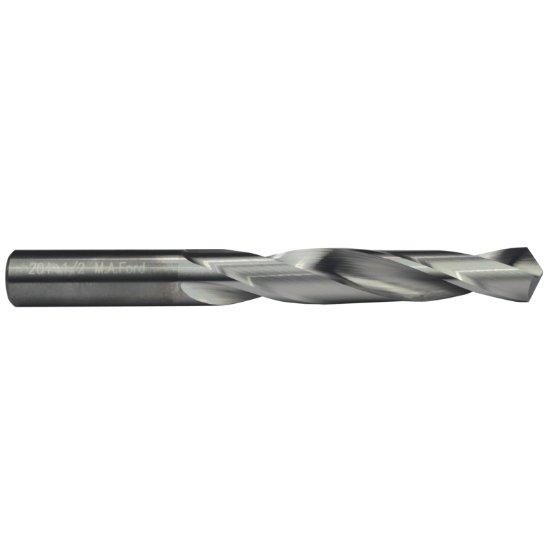

Picture of M.A. Ford 20441300A Carbide Drill Solid Carbide 118° 0.413 Dia 0.413 Shank 4.500 OAL 2 Flute 2.875 Flute Length Carbide AlTiN

M.A. Ford 20441300A Carbide Drill Solid Carbide 118° 0.413 Dia 0.413 Shank 4.500 OAL 2 Flute 2.875 Flute Length Carbide AlTiN

Part Number: MAF77273 ISO: 20441300A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115163
Vendor: Sussex Tool and Supply
$111.20
M.A. FORD 20441300A 20441300 ALTIMA COATING Carbide AlTiN Twister® GP Flute 2.8750 73.03MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.4130 10.49MM
Overall Length 4.5000 114.30MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4130 10.49MM - Z
Flutes/Inserts 2
Tool Dia 0.4133 10.50MM
Type Of Tool Drill
Included Angle 118°
Flute Length 2.8750 73.03MM
Cut Dia Min 0.4133 10.50MM - Z
Drill Length Type Jobber
