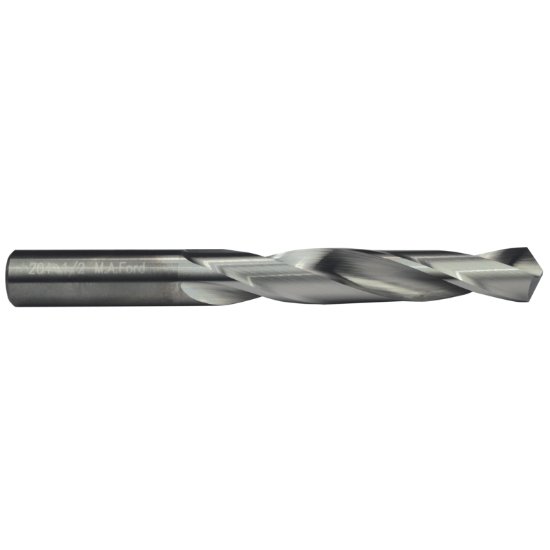

Picture of M.A. Ford 20435800T Carbide Drill Solid Carbide 118° 0.358 Dia 0.358 Shank 4.250 OAL 2 Flute 2.750 Flute Length Carbide TiN

M.A. Ford 20435800T Carbide Drill Solid Carbide 118° 0.358 Dia 0.358 Shank 4.250 OAL 2 Flute 2.750 Flute Length Carbide TiN

Part Number: MAF77269 ISO: 20435800T

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115144
Vendor: Sussex Tool and Supply
$85.00
M.A. FORD 20435800T T JOBBER DRL TIN Carbide TiN Twister® GP Flute 2.7500 69.85MM Carbide Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating TIN
Mach Side Connection Size 0.3580 9.09MM
Overall Length 4.2500 107.95MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3580 9.09MM - T
Flutes/Inserts 2
Tool Dia 0.3580 9.09MM - T
Type Of Tool Drill
Included Angle 118°
Flute Length 2.7500 69.85MM
Cut Dia Min 0.3580 9.09MM - T
Drill Length Type Jobber
