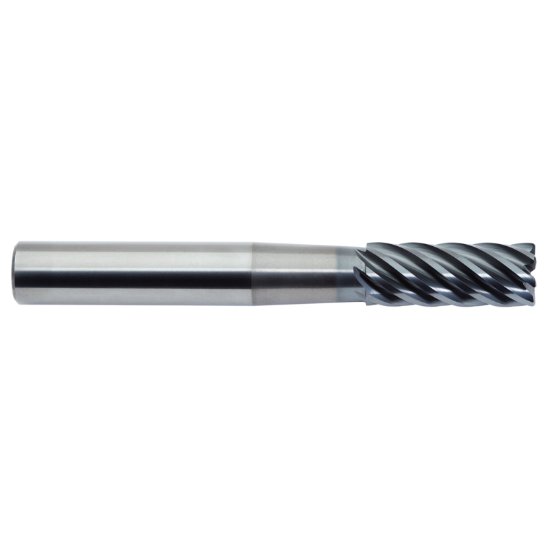

Picture of M.A. Ford 18062905NB Dia 16mm SH 0.6299 LOC 1.5748 OAL5.9055 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0787 2.00mm TuffCut® XR7

M.A. Ford 18062905NB Dia 16mm SH 0.6299 LOC 1.5748 OAL5.9055 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0787 2.00mm TuffCut® XR7

Part Number: MAF18550 0.630 x 0.630 x 1.575 x 5.906

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1243004
Vendor: Sussex Tool and Supply
$253.55
M.A. FORD 18062905NB Standard Helix End Mill Carbide AlTiN Corner Radius 0.0787 2.00MM Standard Flute Flutes 7 Single End TuffCut® XR7 Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating ALTIN
Mach Side Connection Size 0.6299 16.00MM
Overall Length 5.9055 150.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 7
Tool Dia 0.6299 16.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 1.5748 40.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0787 2.00MM
Inch/Metric Metric
Helix Angle 38
Center Cutting Center Cutting
Neck Length 3.1496 80.00MM
