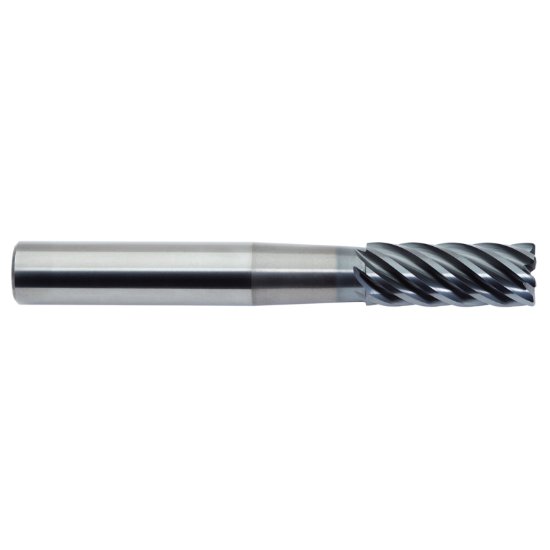

Picture of M.A. Ford 18047205NB Dia 12mm SH 0.4724 LOC 1.1811 OAL 4.7244 End Mill Standard Helix Carbide AlTiN Single End Corner Radius0.0787 2.00mm TuffCut® XR7

M.A. Ford 18047205NB Dia 12mm SH 0.4724 LOC 1.1811 OAL 4.7244 End Mill Standard Helix Carbide AlTiN Single End Corner Radius0.0787 2.00mm TuffCut® XR7

Part Number: MAF18502 0.472 x 0.472 x 1.181 x 4.724
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$136.36
SKU: 1242966

Description

M.A. FORD 18047205NB End Mill Carbide AlTiN Corner Radius 0.0787 2.00MM 7 Flute Single End TuffCut® XR7
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.7244 120.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 7
Tool Dia 0.4724 12.00MM
Length Of Cut 1.1811 30.00MM
Neck Length 2.3622 60.00MM
Geometry & Angles
Corner Radius 0.0787 2.00MM
Helix Angle 38
Performance & Capacity
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
