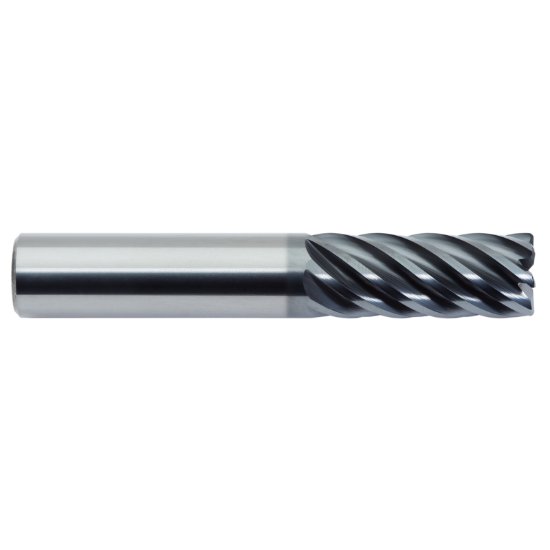

Picture of M.A. Ford 18010018B Dia 1 SH 1.00 LOC 1.50 OAL4.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.1250 3.18mm TuffCut® XR7

M.A. Ford 18010018B Dia 1 SH 1.00 LOC 1.50 OAL4.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.1250 3.18mm TuffCut® XR7

Part Number: MAF18608 1.000 x 1.000 x 1.500 x 4.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1242942
Vendor: Sussex Tool and Supply
$345.66
M.A. FORD 18010018B Standard Helix End Mill Carbide AlTiN Corner Radius 0.1250 3.18MM Standard Flute Flutes 7 Single End TuffCut® XR7 Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating ALTIN
Mach Side Connection Size 1.0000 25.40MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 7
Tool Dia 1.0000 25.40MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.5000 38.10MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.1250 3.18MM
Inch/Metric Inch
Helix Angle 38
Center Cutting Center Cutting
