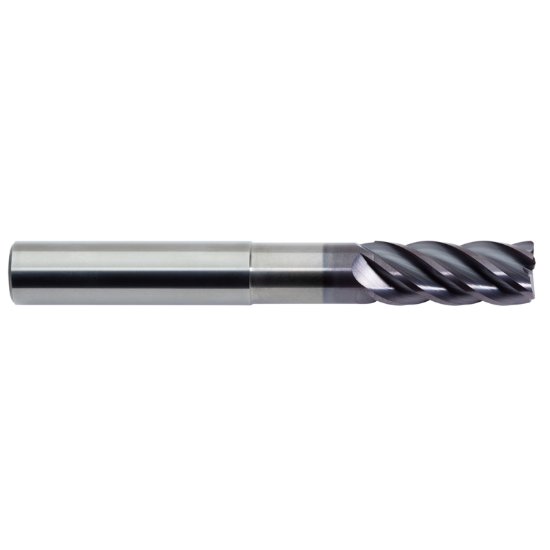

Picture of M.A. Ford 17862545NA Dia 5/8 SH 0.6250 LOC 2.00 OAL6.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0450 1.14mm TuffCut® XR

M.A. Ford 17862545NA Dia 5/8 SH 0.6250 LOC 2.00 OAL6.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0450 1.14mm TuffCut® XR

Part Number: MAF17886 0.625 x 0.625 x 2.000 x 6.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1242846
Vendor: Sussex Tool and Supply
$292.43
M.A. FORD 17862545NA Standard Helix End Mill Carbide AlTiN Corner Radius 0.0450 1.14MM Standard Flute Flutes 5 Single End TuffCut® XR Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating ALTIN
Mach Side Connection Size 0.6250 15.88MM
Overall Length 6.0000 152.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 5
Tool Dia 0.6250 15.88MM - 5/8
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 2.0000 50.80MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0450 1.14MM
Inch/Metric Inch
Helix Angle 38
Center Cutting Center Cutting
Neck Length 4.0000 101.60MM
