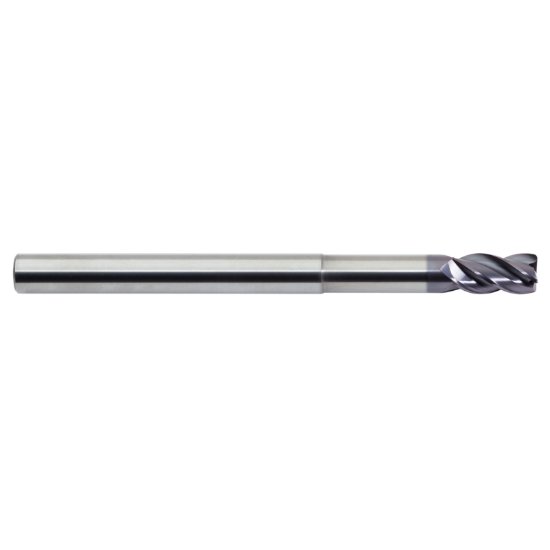

Picture of M.A. Ford 177L7870R039N5A Dia 20mm SH 0.7874 LOC 1.5748 OAL5.9843 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius1.0000 25.40mm TuffCut® XR

M.A. Ford 177L7870R039N5A Dia 20mm SH 0.7874 LOC 1.5748 OAL5.9843 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius1.0000 25.40mm TuffCut® XR

Part Number: MAF18192 0.787 x 0.787 x 1.575 x 5.984

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1242686
Vendor: Sussex Tool and Supply
$327.58
M.A. FORD 177L7870R039N5A Variable Helix End Mill Carbide AlTiN Corner Radius 1.0000 25.40MM Standard Flute Flutes 4 Single End TuffCut® XR Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating ALTIN
Mach Side Connection Size 0.7874 20.00MM
Overall Length 5.9843 152.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 4
Tool Dia 0.7874 20.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 1.5748 40.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 1.0000 25.40MM
Inch/Metric Metric
Helix Angle Variable
Center Cutting Center Cutting
Neck Length 4.0157 102.00MM
