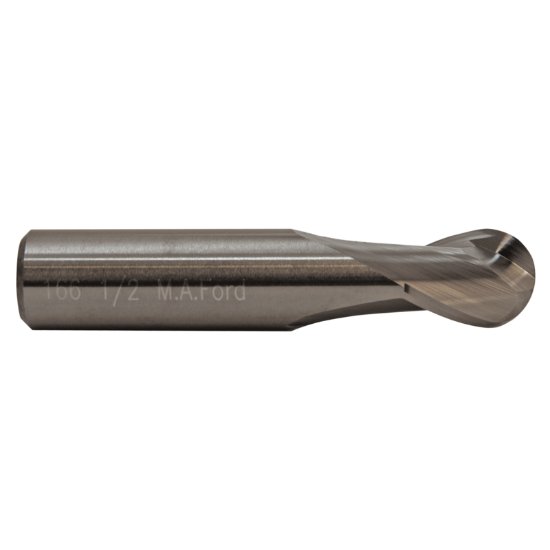

Picture of M.A. Ford 16662990C Dia 16mm SH 0.6299 LOC 0.7874 OAL2.9921 End Mill Standard Flute Standard Helix Carbide TiCN Single End Ball NoseBall TuffCut® GP

M.A. Ford 16662990C Dia 16mm SH 0.6299 LOC 0.7874 OAL2.9921 End Mill Standard Flute Standard Helix Carbide TiCN Single End Ball NoseBall TuffCut® GP

Part Number: MAF56695 0.630 x 0.630 x 0.787 x 2.992

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1242393
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
M.A. FORD 16662990C Standard Helix End Mill Carbide TiCN Ball Nose Ball Standard Flute Flutes 2 Single End TuffCut® GP Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Coating TICN
Mach Side Connection Size 0.6299 16.00MM
Overall Length 2.9921 76.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.6299 16.00MM
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 0.7874 20.00MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
