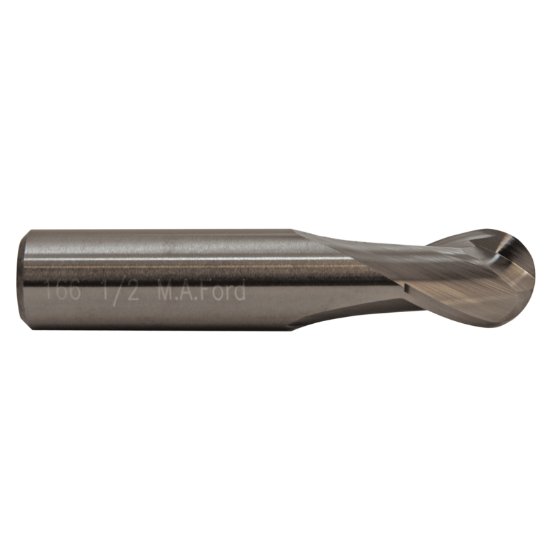

Picture of M.A. Ford 16655120 Dia 14mm SH 0.5512 LOC 0.7087 OAL2.7559 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall TuffCut® GP

M.A. Ford 16655120 Dia 14mm SH 0.5512 LOC 0.7087 OAL2.7559 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall TuffCut® GP

Part Number: MAF16661 0.551 x 0.551 x 0.709 x 2.756

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1257996
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
M.A. FORD 16655120 Standard Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End TuffCut® GP Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Mach Side Connection Size 0.5512 14.00MM
Overall Length 2.7560 70.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5512 14.00MM
Flutes/Inserts 2
Tool Dia 0.5512 14.00MM
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 0.7087 18.00MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
