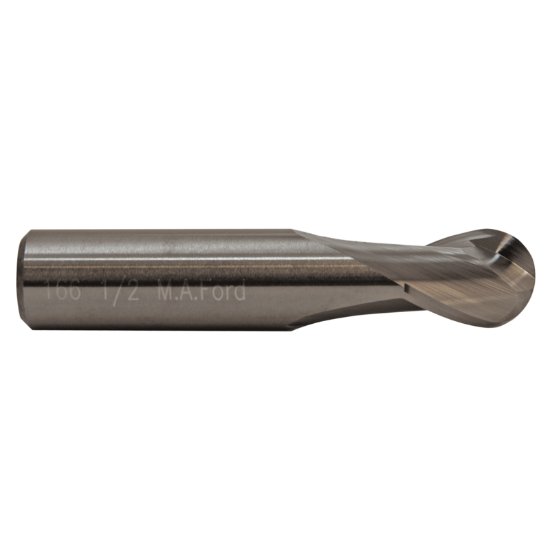

Picture of M.A. Ford 16625000C Dia 1/4 SH 0.2500 LOC 0.50 OAL2.00 End Mill Standard Flute Standard Helix Carbide TiCN Single End Ball NoseBall TuffCut® GP

M.A. Ford 16625000C Dia 1/4 SH 0.2500 LOC 0.50 OAL2.00 End Mill Standard Flute Standard Helix Carbide TiCN Single End Ball NoseBall TuffCut® GP

Part Number: MAF56681 0.250 x 0.250 x 0.500 x 2.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1242351
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
M.A. FORD 16625000C Standard Helix End Mill Carbide TiCN Ball Nose Ball Standard Flute Flutes 2 Single End TuffCut® GP Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Coating TICN
Mach Side Connection Size 0.2500 6.35MM
Overall Length 2.0000 50.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 2
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 0.5000 12.70MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
