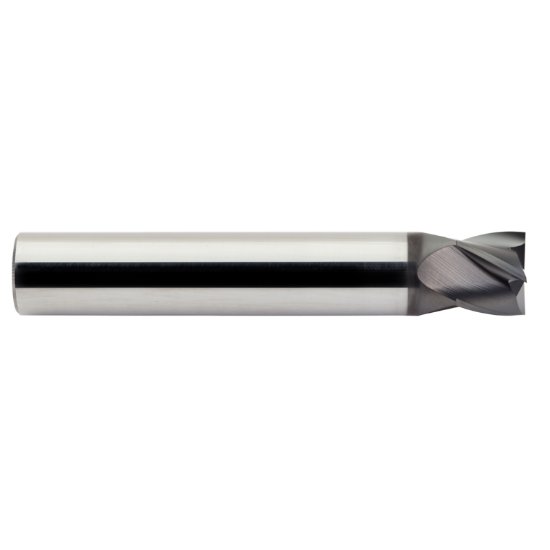

Picture of M.A. Ford 163S250R.030N5GX Dia 1/4 SH 0.2500 LOC 0.3750 OAL4.00 End Mill Standard Flute Standard Helix Carbide Gemx Single End Corner Radius0.0300 0.76mm TuffCut® GP

M.A. Ford 163S250R.030N5GX Dia 1/4 SH 0.2500 LOC 0.3750 OAL4.00 End Mill Standard Flute Standard Helix Carbide Gemx Single End Corner Radius0.0300 0.76mm TuffCut® GP

Part Number: MAF03662 0.250 x 0.250 x 0.375 x 4.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1242165
Vendor: Sussex Tool and Supply
$171.05
M.A. FORD 163S250R.030N5GX Standard Helix End Mill Carbide Gemx Corner Radius 0.0300 0.76MM Standard Flute Flutes 4 Single End TuffCut® GP Carbide A CVD diamond coating for composites and aluminum that offers the maximum hardness and wear resistance of any of our coatings.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Coating Gemx
Mach Side Connection Size 0.2500 6.35MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 4
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Type Standard / With Neck
Performance Rating General Performance
Length Of Cut 0.3750 9.53MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0300 0.76MM
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
Neck Length 1.2500 31.75MM
