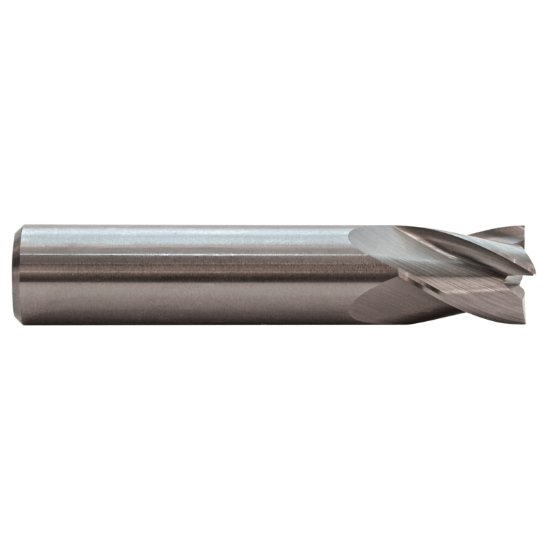

Picture of M.A. Ford 16370870R.030 Dia 18mm SH 0.7087 LOC 0.9843 OAL2.9921 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0300 0.76mm TuffCut® GP

M.A. Ford 16370870R.030 Dia 18mm SH 0.7087 LOC 0.9843 OAL2.9921 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0300 0.76mm TuffCut® GP

Part Number: MAF16508 0.709 x 0.709 x 0.984 x 2.992

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1242160
Vendor: Sussex Tool and Supply
$138.74
M.A. FORD 16370870R.030 Standard Helix End Mill Carbide Uncoated Corner Radius 0.0300 0.76MM Standard Flute Flutes 4 Single End TuffCut® GP Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Mach Side Connection Size 0.7087 18.00MM
Overall Length 2.9921 76.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7087 18.00MM
Flutes/Inserts 4
Tool Dia 0.7087 18.00MM
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 0.9843 25.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0300 0.76MM
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
