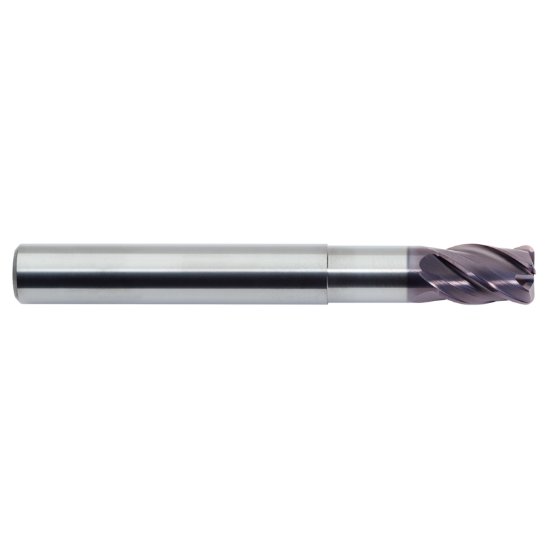

Picture of M.A. Ford 158M12N40-0.3RA Dia 12mm SH 0.4724 LOC 0.7087 OAL3.9370 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0118 0.30mm TuffCut® DM

M.A. Ford 158M12N40-0.3RA Dia 12mm SH 0.4724 LOC 0.7087 OAL3.9370 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0118 0.30mm TuffCut® DM

Part Number: MAF99219 0.472 x 0.472 x 0.709 x 3.937

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1242134
Vendor: Sussex Tool and Supply
$95.64
M.A. FORD 158M12N40-0.3RA Standard Helix End Mill Carbide AlTiN Corner Radius 0.0118 0.30MM Standard Flute Flutes 4 Single End TuffCut® DM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, <42HRC Steel, High Temp, Inconel
Coating ALTIN
Mach Side Connection Size 0.4724 12.00MM
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 4
Tool Dia 0.4724 12.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.7087 18.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0118 0.30MM
Inch/Metric Metric
Helix Angle 20
Center Cutting Center Cutting
Neck Length 1.5748 40.00MM
