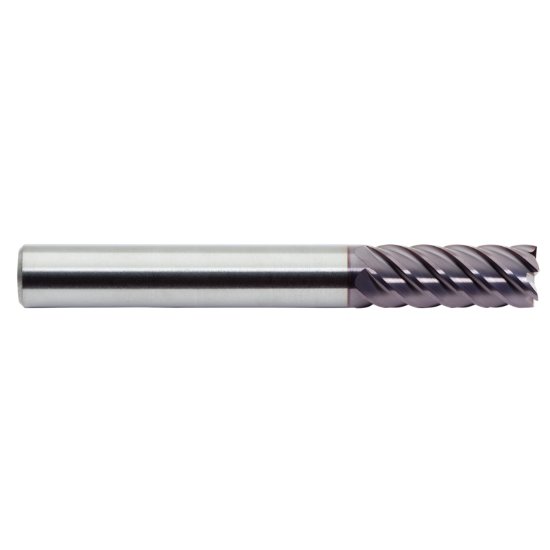

Picture of M.A. Ford 15712501A Dia 1/8 SH 0.2500 LOC 0.3750 OAL3.00 End Mill Standard Flute High Helix Carbide AlTiN Single End Corner Radius0.0150 0.38mm TuffCut DM®

M.A. Ford 15712501A Dia 1/8 SH 0.2500 LOC 0.3750 OAL3.00 End Mill Standard Flute High Helix Carbide AlTiN Single End Corner Radius0.0150 0.38mm TuffCut DM®

Part Number: MAF15703 0.125 x 0.250 x 0.375 x 3.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1241970
Vendor: Sussex Tool and Supply
$66.17
M.A. FORD 15712501A High Helix End Mill Carbide AlTiN Corner Radius 0.0150 0.38MM Standard Flute Flutes 4 Single End TuffCut DM® Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Grey Iron, <60HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.2500 6.35MM
Overall Length 3.0000 76.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 4
Tool Dia 0.1250 3.18MM - 1/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.3750 9.53MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0150 0.38MM
Inch/Metric Inch
Helix Angle 45
Center Cutting Center Cutting
