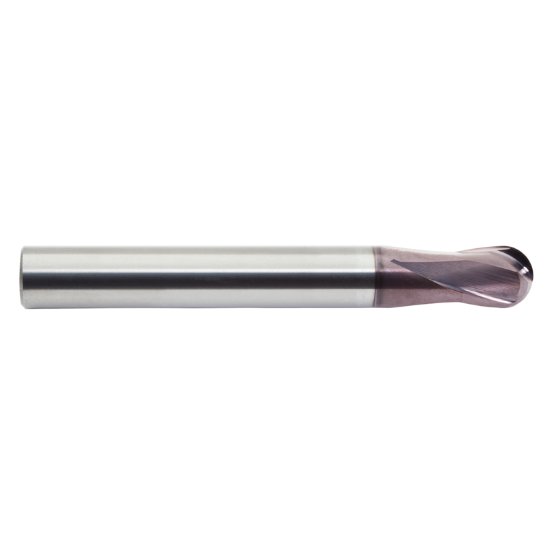

Picture of M.A. Ford 156M0800N30A Dia 8mm SH 0.3150 LOC 0.2165 OAL 4.0157 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall TuffCut DM®

M.A. Ford 156M0800N30A Dia 8mm SH 0.3150 LOC 0.2165 OAL 4.0157 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall TuffCut DM®

Part Number: MAF15665 0.315 x 0.315 x 0.217 x 4.016
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$110.75
SKU: 1241963

Description

M.A. FORD 156M0800N30A End Mill Carbide AlTiN Ball Nose 2 Flute Single End TuffCut DM®
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.0157 102.00MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.3150 8.00MM
Length Of Cut 0.2165 5.50MM
Neck Length 1.1811 30.00MM
Geometry & Angles
Helix Angle 20
Performance & Capacity
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
