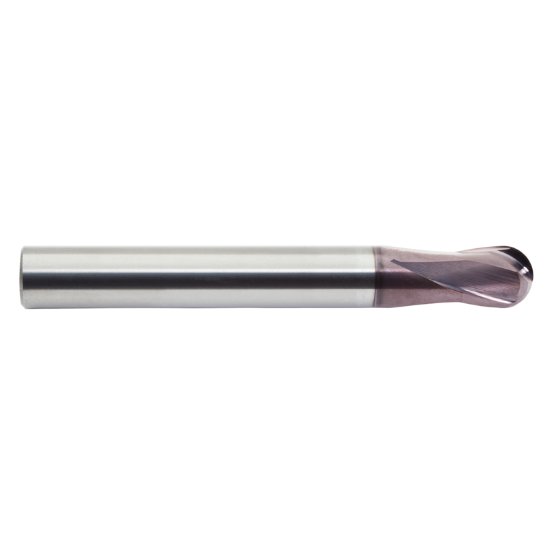

Picture of M.A. Ford 156M0180N20A Dia 1.80mm SH 0.1575 LOC 0.0630 OAL2.480 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall TuffCut DM®

M.A. Ford 156M0180N20A Dia 1.80mm SH 0.1575 LOC 0.0630 OAL2.480 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall TuffCut DM®

Part Number: MAF15455 0.071 x 0.157 x 0.063 x 2.480

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1241933
Vendor: Sussex Tool and Supply
$53.24
M.A. FORD 156M0180N20A Standard Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 2 Single End TuffCut DM® Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Grey Iron, <60HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.1575 4.00MM
Overall Length 2.4803 63.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 2
Tool Dia 0.0708 1.80MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.0630 1.60MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 20
Center Cutting Center Cutting
Neck Length 0.7874 20.00MM
