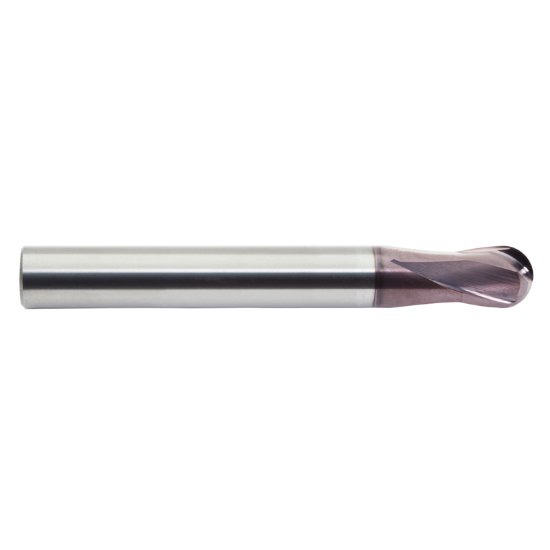

Picture of M.A. Ford 15647240A Dia 12mm SH 0.4724 LOC 0.4724 OAL4.0157 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall TuffCut DM®

M.A. Ford 15647240A Dia 12mm SH 0.4724 LOC 0.4724 OAL4.0157 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall TuffCut DM®

Part Number: MAF15672 0.472 x 0.472 x 0.472 x 4.016

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1241890
Vendor: Sussex Tool and Supply
$154.32
M.A. FORD 15647240A Standard Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 2 Single End TuffCut DM® Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Grey Iron, <60HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.4724 12.00MM
Overall Length 4.0157 102.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4724 12.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.4724 12.00MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 20
Center Cutting Center Cutting
