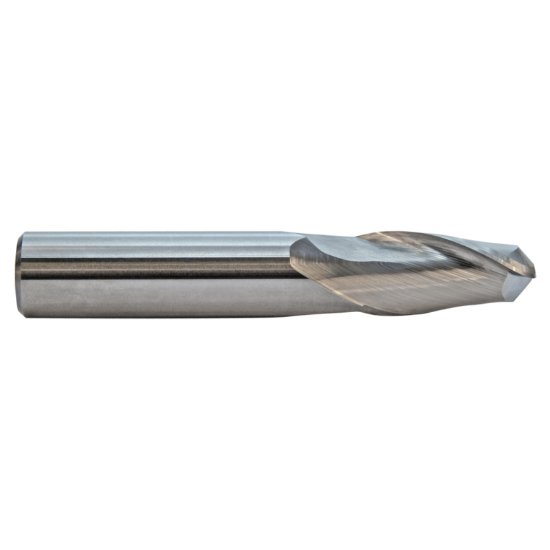

Picture of M.A. Ford 15068750 Dia 11/16 SH 0.7500 LOC 1.3750 OAL4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall TuffCut® GP

M.A. Ford 15068750 Dia 11/16 SH 0.7500 LOC 1.3750 OAL4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall TuffCut® GP

Part Number: MAF15077 0.688 x 0.750 x 1.375 x 4.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1260440
Vendor: Sussex Tool and Supply
$128.25
M.A. FORD 15068750 Standard Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End TuffCut® GP Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Mach Side Connection Size 0.7500 19.05MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.6875 17.46MM - 11/16
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 1.3750 34.93MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
