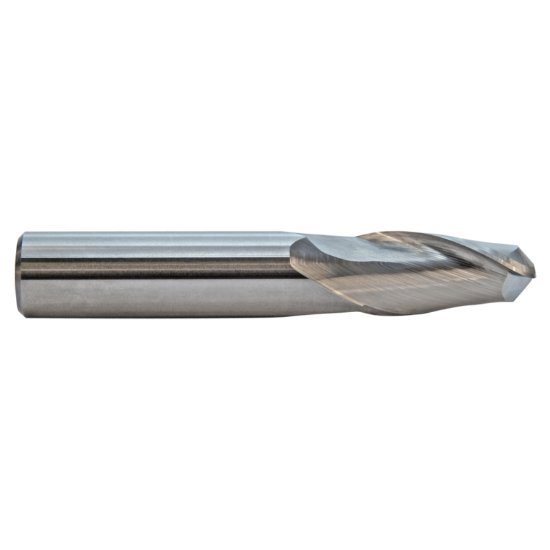

Picture of M.A. Ford 15021870 Dia 7/32 Sh 0.2500 Loc 0.6250 Oal2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Noseball Tuffcut® Gp

M.A. Ford 15021870 Dia 7/32 Sh 0.2500 Loc 0.6250 Oal2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Noseball Tuffcut® Gp

Part Number: MAF15041 0.219 x 0.250 x 0.625 x 2.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1080274
Vendor: Sussex Tool and Supply
$27.50
M.A. FORD 15021870 Standard Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End TuffCut® GP Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Mach Side Connection Size 0.2500 6.35MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 2
Tool Dia 0.2188 5.56MM - 7/32
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 0.6250 15.88MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
