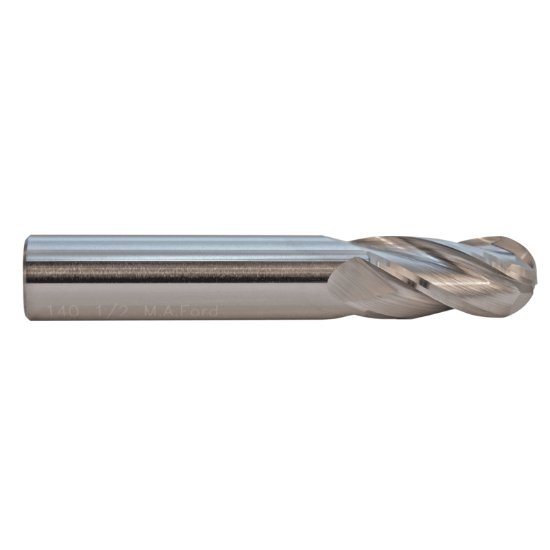

Picture of M.A. Ford 14056250A Dia 9/16 SH 0.5625 LOC 1.1250 OAL3.50 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall TuffCut® GP

M.A. Ford 14056250A Dia 9/16 SH 0.5625 LOC 1.1250 OAL3.50 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall TuffCut® GP

Part Number: MAF59001 0.563 x 0.563 x 1.125 x 3.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1241603
Vendor: Sussex Tool and Supply
$129.05
M.A. FORD 14056250A Standard Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 4 Single End TuffCut® GP Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, <42HRC Steel
Coating ALTIN
Mach Side Connection Size 0.5625 14.29MM
Overall Length 3.5000 88.90MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Flutes/Inserts 4
Tool Dia 0.5625 14.29MM - 9/16
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 1.1250 28.58MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
