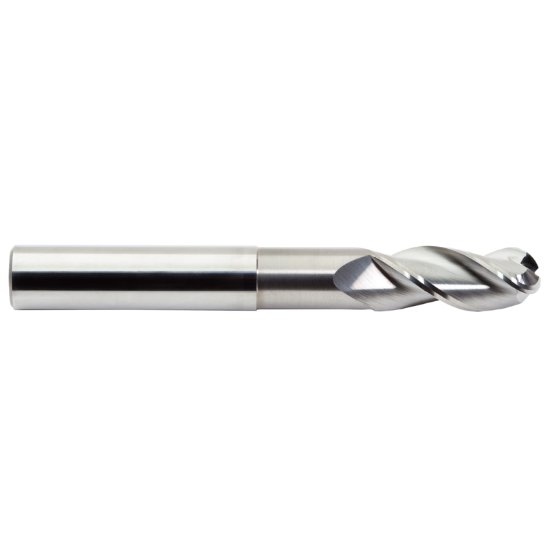

Picture of M.A. Ford 138B75001NGP Dia 3/4 SH 0.7500 LOC 1.6250 OAL6.00 End Mill Standard Flute Standard Helix Carbide Gem Plus Single End Ball NoseBall TuffCut® X-AL

M.A. Ford 138B75001NGP Dia 3/4 SH 0.7500 LOC 1.6250 OAL6.00 End Mill Standard Flute Standard Helix Carbide Gem Plus Single End Ball NoseBall TuffCut® X-AL

Part Number: MAF17205 0.750 x 0.750 x 1.625 x 6.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1241483
Vendor: Sussex Tool and Supply
$337.50
M.A. FORD 138B75001NGP Standard Helix End Mill Carbide Gem Plus Ball Nose Ball Standard Flute Flutes 3 Single End TuffCut® X-AL Carbide Recommended for aluminum and aluminum alloys up to 12% Si, non-ferrous metals, and composites. It is designed to enhance wear resistance and maintain sharp cutting edges.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Coating Gem Plus
Mach Side Connection Size 0.7500 19.05MM
Overall Length 6.0000 152.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 1.6250 41.28MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 36
Center Cutting Center Cutting
Neck Length 3.3750 85.73MM
