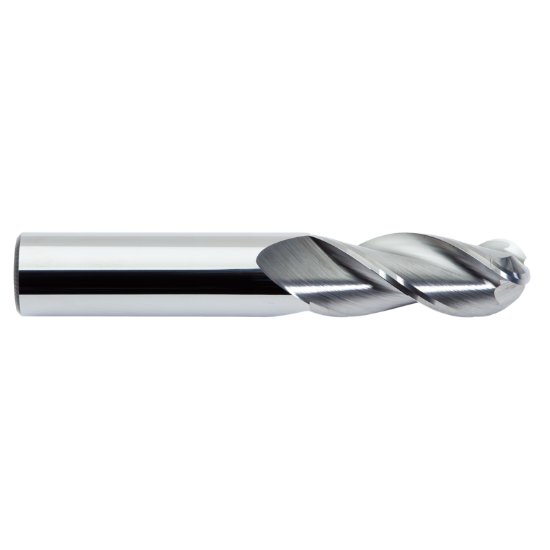

Picture of M.A. Ford 138B50001F Dia 1/2 SH 0.50 LOC 1.2500 OAL3.00 End Mill Standard Flute Standard Helix Carbide Fordlube Single End Ball NoseBall TuffCut® X-AL

M.A. Ford 138B50001F Dia 1/2 SH 0.50 LOC 1.2500 OAL3.00 End Mill Standard Flute Standard Helix Carbide Fordlube Single End Ball NoseBall TuffCut® X-AL

Part Number: MAF15305 0.500 x 0.500 x 1.250 x 3.000
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$152.25
SKU: 1241471

Description

M.A. FORD 138B50001F Standard Helix End Mill Carbide Fordlube Ball Nose Ball Standard Flute Flutes 3 Single End TuffCut® X-AL Carbide Fordlube Titanium DiBoride (TiB2) is a unique coating with a low aluminum affinity, smooth surface finish and high hardness.
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 3
Tool Dia 0.5000 12.70MM - 1/2
Length Of Cut 1.2500 31.75MM
Geometry & Angles
Helix Angle 36
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating Fordlube
