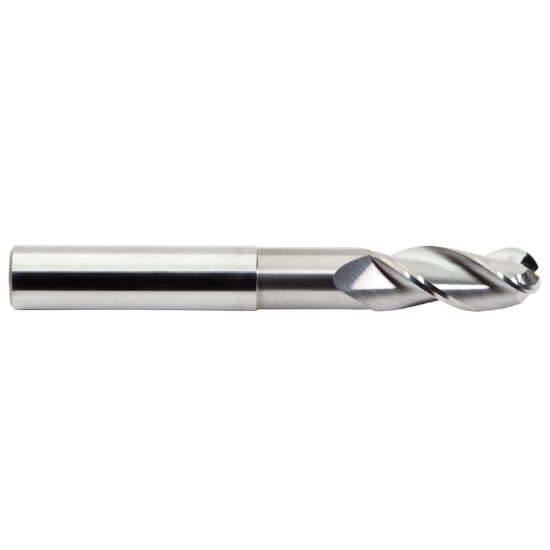

Picture of M.A. Ford 138B3937N5 Dia 10mm SH 0.3937 LOC 0.4724 OAL4.3307 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall TuffCut® X-AL

M.A. Ford 138B3937N5 Dia 10mm SH 0.3937 LOC 0.4724 OAL4.3307 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall TuffCut® X-AL

Part Number: MAF13384 0.394 x 0.394 x 0.472 x 4.331

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1231233
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
M.A. FORD 138B3937N5 Standard Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 3 Single End TuffCut® X-AL Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.3937 10.00MM
Overall Length 4.3307 110.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 3
Tool Dia 0.3937 10.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.4724 12.00MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 36
Center Cutting Center Cutting
Neck Length 2.0472 52.00MM
