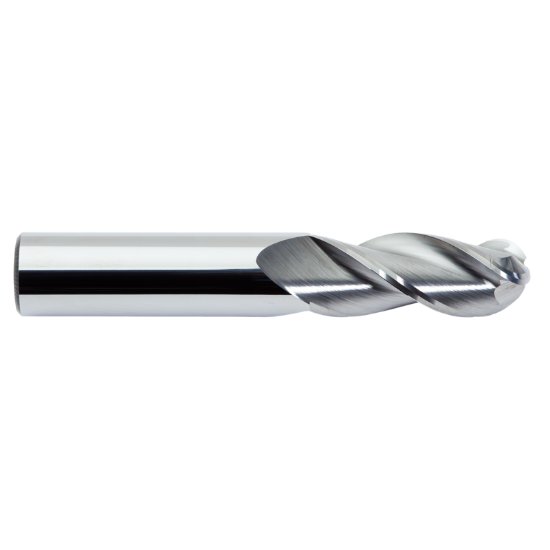

Picture of M.A. Ford 138B12500 Dia 1/8 SH 0.1250 LOC 0.3750 OAL1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall TuffCut® X-AL

M.A. Ford 138B12500 Dia 1/8 SH 0.1250 LOC 0.3750 OAL1.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall TuffCut® X-AL

Part Number: MAF13300 0.125 x 0.125 x 0.375 x 1.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1241426
Vendor: Sussex Tool and Supply
$26.74
M.A. FORD 138B12500 Standard Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 3 Single End TuffCut® X-AL Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.1250 3.18MM
Overall Length 1.5000 38.10MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 3
Tool Dia 0.1250 3.18MM - 1/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.3750 9.53MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 36
Center Cutting Center Cutting
