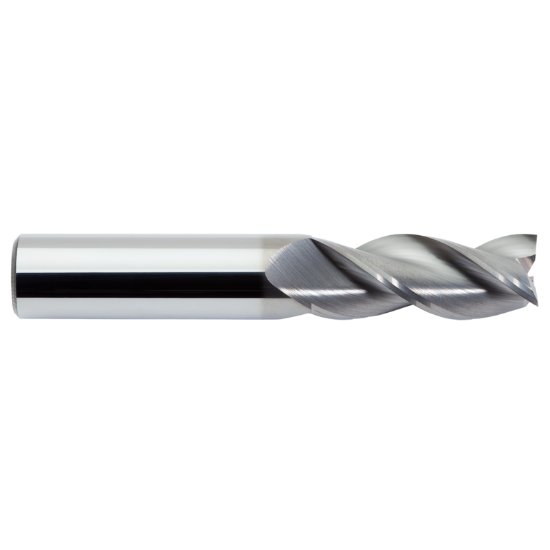

Picture of M.A. Ford 13878740R.079CE Dia 20mm SH 0.7874 LOC 1.4961 OAL4.0157 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0787 2.00mm TuffCut® X-AL

M.A. Ford 13878740R.079CE Dia 20mm SH 0.7874 LOC 1.4961 OAL4.0157 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0787 2.00mm TuffCut® X-AL

Part Number: MAF77165 0.787 x 0.787 x 1.496 x 4.016

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1241412
Vendor: Sussex Tool and Supply
$317.36
M.A. FORD 13878740R.079CE Standard Helix End Mill Carbide AlTiN Corner Radius 0.0787 2.00MM Standard Flute Flutes 3 Single End TuffCut® X-AL Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Coating ALTIN
Mach Side Connection Size 0.7874 20.00MM
Overall Length 4.0157 102.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 3
Tool Dia 0.7874 20.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.4961 38.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0787 2.00MM
Inch/Metric Metric
Helix Angle 36
Center Cutting Center Cutting
