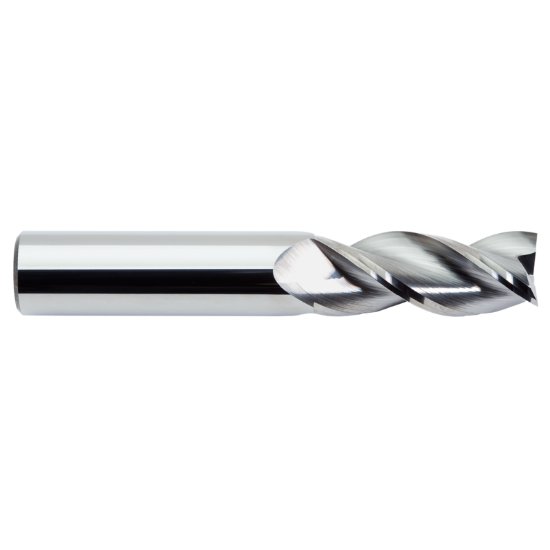

Picture of M.A. Ford 13875005R.010 Dia 3/4 SH 0.7500 LOC 2.00 OAL5.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0100 0.25mm TuffCut® X-AL

M.A. Ford 13875005R.010 Dia 3/4 SH 0.7500 LOC 2.00 OAL5.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0100 0.25mm TuffCut® X-AL

Part Number: MAF15254 0.750 x 0.750 x 2.000 x 5.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1241369
Vendor: Sussex Tool and Supply
$230.06
M.A. FORD 13875005R.010 Standard Helix End Mill Carbide Uncoated Corner Radius 0.0100 0.25MM Standard Flute Flutes 3 Single End TuffCut® X-AL Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.7500 19.05MM
Overall Length 5.0000 127.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 2.0000 50.80MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0100 0.25MM
Inch/Metric Inch
Helix Angle 36
Center Cutting Center Cutting
