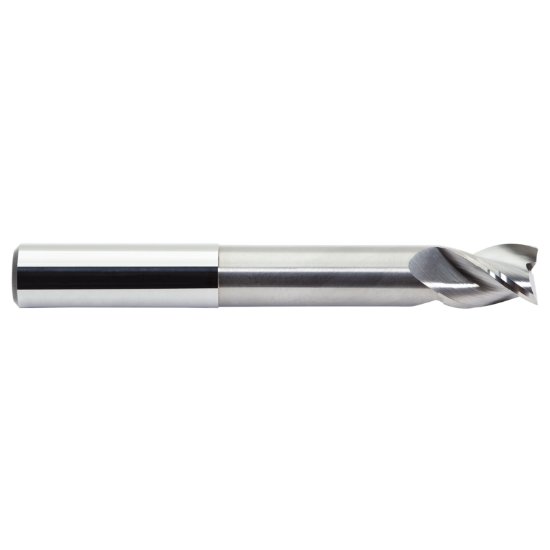

Picture of M.A. Ford 13875002NR.030F Dia 3/4 SH 0.7500 LOC 1.00 OAL6.00 End Mill Standard Flute Standard Helix Carbide Fordlube Single End Corner Radius0.0300 0.76mm TuffCut® X-AL

M.A. Ford 13875002NR.030F Dia 3/4 SH 0.7500 LOC 1.00 OAL6.00 End Mill Standard Flute Standard Helix Carbide Fordlube Single End Corner Radius0.0300 0.76mm TuffCut® X-AL

Part Number: MAF15389 0.750 x 0.750 x 1.000 x 6.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1281256
Vendor: Sussex Tool and Supply
$290.48
M.A. FORD 13875002NR.030F Standard Helix End Mill Carbide Fordlube Corner Radius 0.0300 0.76MM Standard Flute Flutes 3 Single End TuffCut® X-AL Carbide Fordlube Titanium DiBoride (TiB2) is a unique coating with a low aluminum affinity, smooth surface finish and high hardness.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Coating Fordlube
Mach Side Connection Size 0.7500 19.05MM
Overall Length 6.0000 152.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Length Type Long / With Neck
Performance Rating High Performance
Length Of Cut 1.0000 25.40MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0300 0.76MM
Inch/Metric Inch
Helix Angle 36
Center Cutting Center Cutting
Neck Length 3.3750 85.73MM
