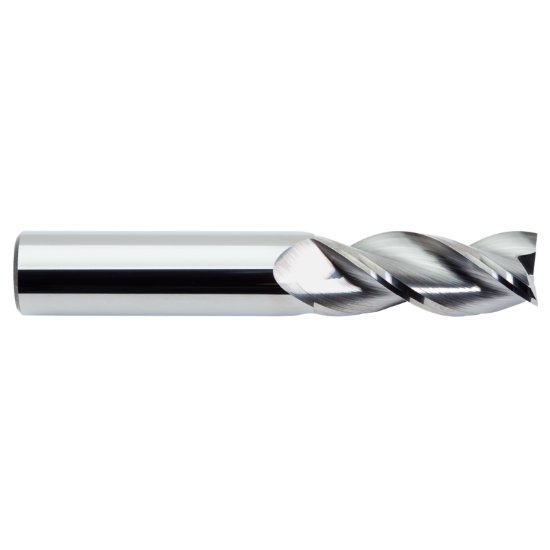

Picture of M.A. Ford 13862507R.045 Dia 5/8 SH 0.6250 LOC 3.2500 OAL6.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0450 1.14mm TuffCut® X-AL

M.A. Ford 13862507R.045 Dia 5/8 SH 0.6250 LOC 3.2500 OAL6.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0450 1.14mm TuffCut® X-AL

Part Number: MAF11484 0.625 x 0.625 x 3.250 x 6.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1196989
Vendor: Sussex Tool and Supply
$192.42
M.A. FORD 13862507R.045 Standard Helix End Mill Carbide Uncoated Corner Radius 0.0450 1.14MM Standard Flute Flutes 3 Single End TuffCut® X-AL Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.6250 15.88MM
Overall Length 6.0000 152.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Tool Dia 0.6250 15.88MM - 5/8
Length Type Extra Long
Performance Rating High Performance
Length Of Cut 3.2500 82.55MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0450 1.14MM
Inch/Metric Inch
Helix Angle 36
Center Cutting Center Cutting
