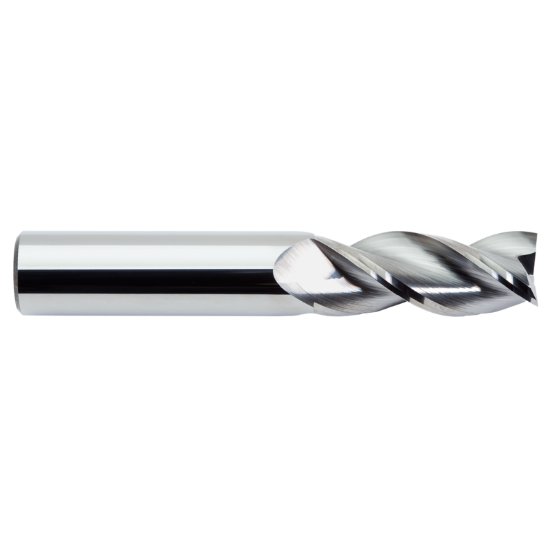

Picture of M.A. Ford 13862502R.030F Dia 5/8 SH 0.6250 LOC 0.8750 OAL3.50 End Mill Standard Flute Standard Helix Carbide Fordlube Single End Corner Radius0.0300 0.76mm TuffCut® X-AL

M.A. Ford 13862502R.030F Dia 5/8 SH 0.6250 LOC 0.8750 OAL3.50 End Mill Standard Flute Standard Helix Carbide Fordlube Single End Corner Radius0.0300 0.76mm TuffCut® X-AL

Part Number: MAF16897 0.625 x 0.625 x 0.875 x 3.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1241292
Vendor: Sussex Tool and Supply
$144.95
M.A. FORD 13862502R.030F Standard Helix End Mill Carbide Fordlube Corner Radius 0.0300 0.76MM Standard Flute Flutes 3 Single End TuffCut® X-AL Carbide Fordlube Titanium DiBoride (TiB2) is a unique coating with a low aluminum affinity, smooth surface finish and high hardness.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Coating Fordlube
Mach Side Connection Size 0.6250 15.88MM
Overall Length 3.5000 88.90MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Tool Dia 0.6250 15.88MM - 5/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.8750 22.23MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0300 0.76MM
Inch/Metric Inch
Helix Angle 36
Center Cutting Center Cutting
