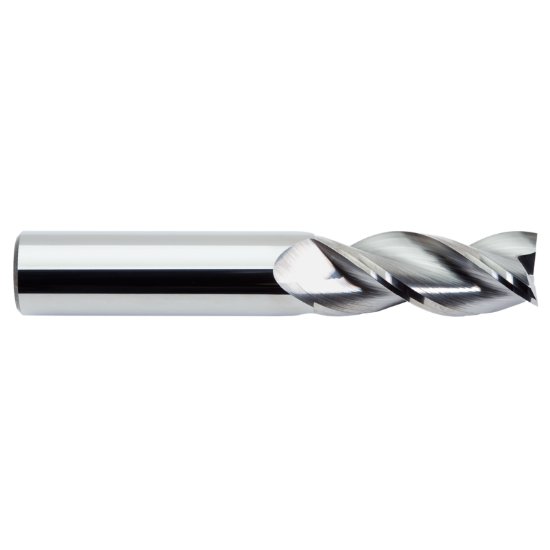

Picture of M.A. Ford 13850005R.120 Dia 1/2 Sh 0.50 Loc 2.00 Oal4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.1200 3.05mm Tuffcut® X-Al

M.A. Ford 13850005R.120 Dia 1/2 Sh 0.50 Loc 2.00 Oal4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.1200 3.05mm Tuffcut® X-Al

Part Number: MAF13026 0.500 x 0.500 x 2.000 x 4.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1030924
Vendor: Sussex Tool and Supply
$100.07
M.A. FORD 13850005R.120 Standard Helix End Mill Carbide Uncoated Corner Radius 0.1200 3.05MM Standard Flute Flutes 3 Single End TuffCut® X-AL Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.5000 12.70MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 3
Tool Dia 0.5000 12.70MM - 1/2
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 2.0000 50.80MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.1200 3.05MM
Inch/Metric Inch
Helix Angle 36
Center Cutting Center Cutting
