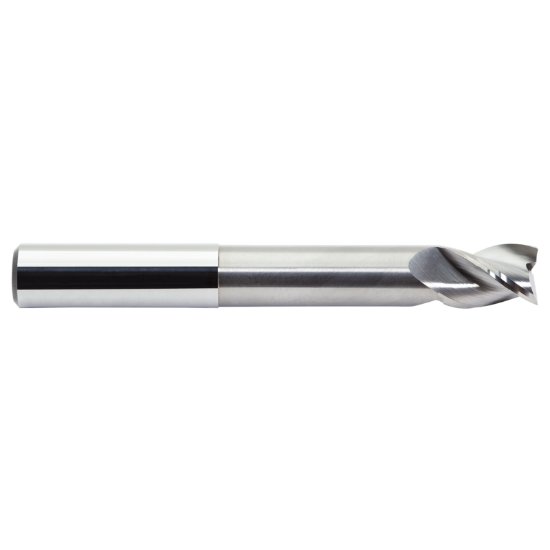

Picture of M.A. Ford 13837513NR.060 Dia 3/8 SH 0.3750 LOC 0.6250 OAL 6.00 End Mill Standard Helix Carbide Uncoated Single End Corner Radius0.0600 1.52mm TuffCut® X-AL

M.A. Ford 13837513NR.060 Dia 3/8 SH 0.3750 LOC 0.6250 OAL 6.00 End Mill Standard Helix Carbide Uncoated Single End Corner Radius0.0600 1.52mm TuffCut® X-AL

Part Number: MAF11842 0.375 x 0.375 x 0.625 x 6.000
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$135.07
SKU: 1241174

Description

M.A. FORD 13837513NR.060 End Mill Carbide Uncoated Corner Radius 0.0600 1.52MM 3 Flute Single End TuffCut® X-AL
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Extra Long / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 3
Tool Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.6250 15.88MM
Neck Length 3.1250 79.38MM
Geometry & Angles
Corner Radius 0.0600 1.52MM
Helix Angle 36
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
