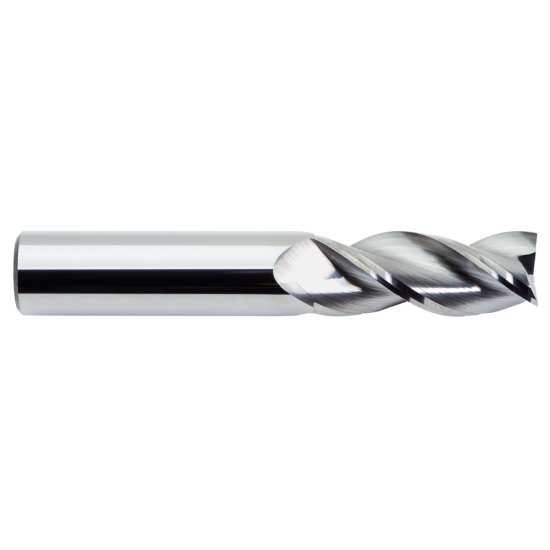

Picture of M.A. Ford 13837509R.030 Dia 3/8 SH 0.3750 LOC 2.50 OAL4.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0300 0.76mm TuffCut® X-AL

M.A. Ford 13837509R.030 Dia 3/8 SH 0.3750 LOC 2.50 OAL4.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0300 0.76mm TuffCut® X-AL

Part Number: MAF75098 0.375 x 0.375 x 2.500 x 4.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1241164
Vendor: Sussex Tool and Supply
$91.96
M.A. FORD 13837509R.030 Standard Helix End Mill Carbide Uncoated Corner Radius 0.0300 0.76MM Standard Flute Flutes 3 Single End TuffCut® X-AL Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.3750 9.53MM
Overall Length 4.5000 114.30MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 3
Tool Dia 0.3750 9.53MM - 3/8
Length Type Extra Long
Performance Rating High Performance
Length Of Cut 2.5000 63.50MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0300 0.76MM
Inch/Metric Inch
Helix Angle 36
Center Cutting Center Cutting
