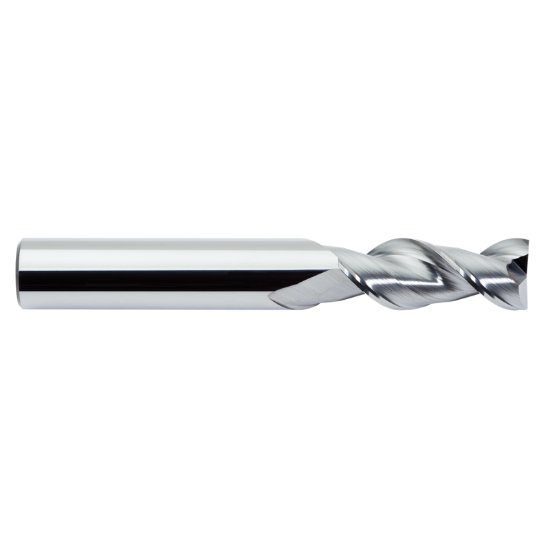

Picture of M.A. Ford 13625001R.030 Dia 1/4 SH 0.2500 LOC 1.2500 OAL3.0625 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0300 0.76mm TuffCut® AL

M.A. Ford 13625001R.030 Dia 1/4 SH 0.2500 LOC 1.2500 OAL3.0625 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius0.0300 0.76mm TuffCut® AL

Part Number: MAF17207 0.250 x 0.250 x 1.250 x 3.063

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1283044
Vendor: Sussex Tool and Supply
$63.09
M.A. FORD 13625001R.030 High Helix End Mill Carbide Uncoated Corner Radius 0.0300 0.76MM Standard Flute Flutes 2 Single End TuffCut® AL Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.2500 6.35MM
Overall Length 3.0625 77.79MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 2
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.2500 31.75MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0300 0.76MM
Inch/Metric Inch
Helix Angle 45
Center Cutting Center Cutting
