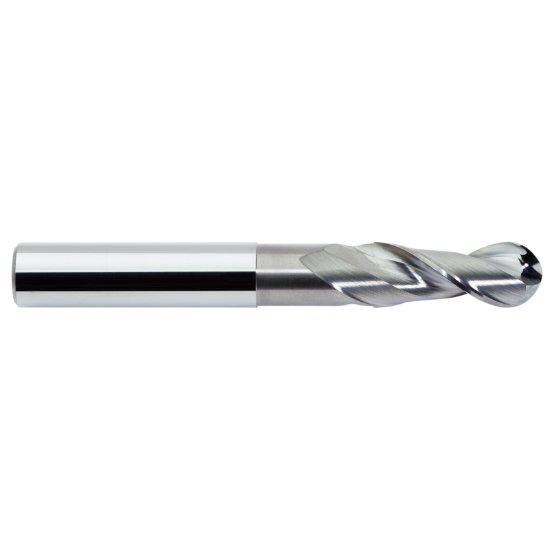

Picture of M.A. Ford 135B50001NCE Dia 1/2 SH 0.50 LOC 1.2500 OAL4.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall TuffCut® AL

M.A. Ford 135B50001NCE Dia 1/2 SH 0.50 LOC 1.2500 OAL4.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall TuffCut® AL

Part Number: MAF77021 0.500 x 0.500 x 1.250 x 4.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1282074
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
M.A. FORD 135B50001NCE Standard Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 2 Single End TuffCut® AL Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Coating ALTIN
Mach Side Connection Size 0.5000 12.70MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 37
Center Cutting Center Cutting
Neck Length 2.1250 53.98MM
