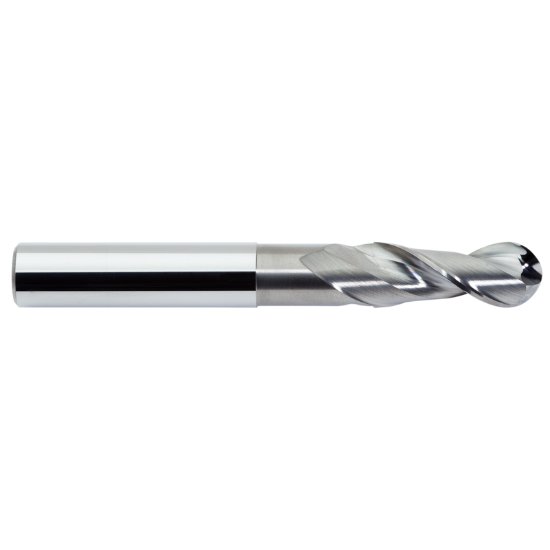

Picture of M.A. Ford 135B4724N3 Dia 12mm SH 0.4724 LOC 0.6299 OAL2.9921 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall TuffCut® AL

M.A. Ford 135B4724N3 Dia 12mm SH 0.4724 LOC 0.6299 OAL2.9921 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall TuffCut® AL

Part Number: MAF13248 0.472 x 0.472 x 0.630 x 2.992
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$134.35
SKU: 1240896

Description

M.A. FORD 135B4724N3 Standard Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End TuffCut® AL Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.9921 76.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4724 12.00MM
Length Of Cut 0.6300 16.00MM
Neck Length 1.4961 38.00MM
Geometry & Angles
Helix Angle 37
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
