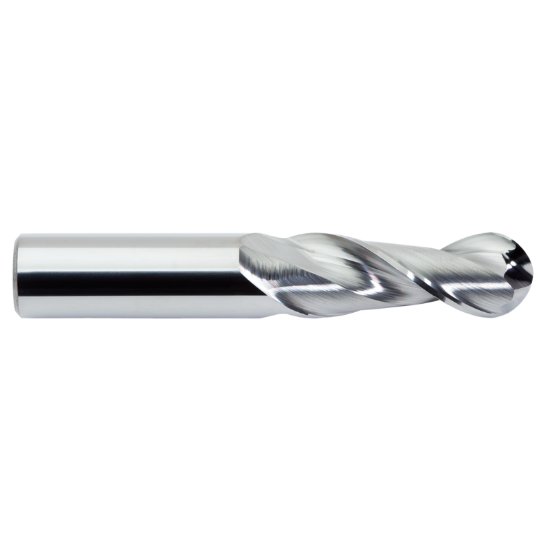

Picture of M.A. Ford 135B43750 Dia 7/16 SH 0.4375 LOC 0.5625 OAL2.7500 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall TuffCut® AL

M.A. Ford 135B43750 Dia 7/16 SH 0.4375 LOC 0.5625 OAL2.7500 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall TuffCut® AL

Part Number: MAF13460 0.438 x 0.438 x 0.563 x 2.750

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1192737
Vendor: Sussex Tool and Supply
$57.82
M.A. FORD 135B43750 Standard Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End TuffCut® AL Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.4375 11.11MM
Overall Length 2.7500 69.85MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Flutes/Inserts 2
Tool Dia 0.4375 11.11MM - 7/16
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.5625 14.29MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 37
Center Cutting Center Cutting
