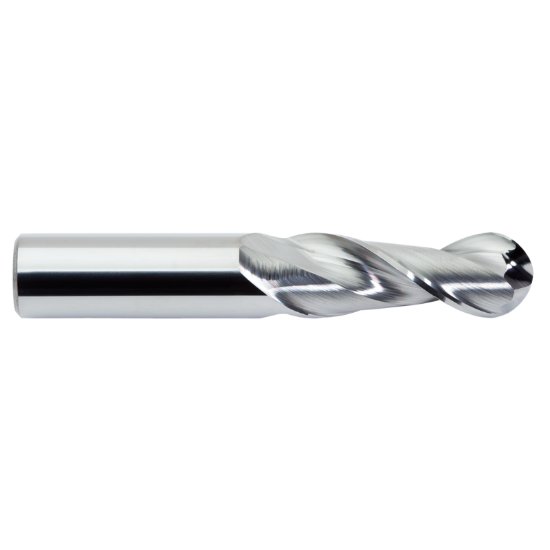

Picture of M.A. Ford 135B37501CE Dia 3/8 SH 0.3750 LOC 1.00 OAL2.50 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall TuffCut® AL

M.A. Ford 135B37501CE Dia 3/8 SH 0.3750 LOC 1.00 OAL2.50 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall TuffCut® AL

Part Number: MAF77017 0.375 x 0.375 x 1.000 x 2.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1240890
Vendor: Sussex Tool and Supply
$76.70
M.A. FORD 135B37501CE Standard Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 2 Single End TuffCut® AL Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Coating ALTIN
Mach Side Connection Size 0.3750 9.53MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 2
Tool Dia 0.3750 9.53MM - 3/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.0000 25.40MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 37
Center Cutting Center Cutting
