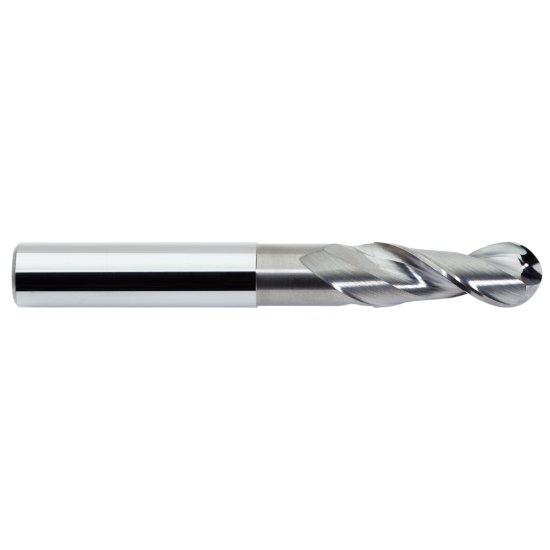

Picture of M.A. Ford 135B1575N3 Dia 4mm SH 0.1575 LOC 0.2362 OAL2.0079 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall TuffCut® AL

M.A. Ford 135B1575N3 Dia 4mm SH 0.1575 LOC 0.2362 OAL2.0079 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall TuffCut® AL

Part Number: MAF13238 0.157 x 0.157 x 0.236 x 2.008

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1240866
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
M.A. FORD 135B1575N3 Standard Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End TuffCut® AL Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.1575 4.00MM
Overall Length 2.0079 51.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 2
Tool Dia 0.1575 4.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.2362 6.00MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 37
Center Cutting Center Cutting
Neck Length 0.5512 14.00MM
