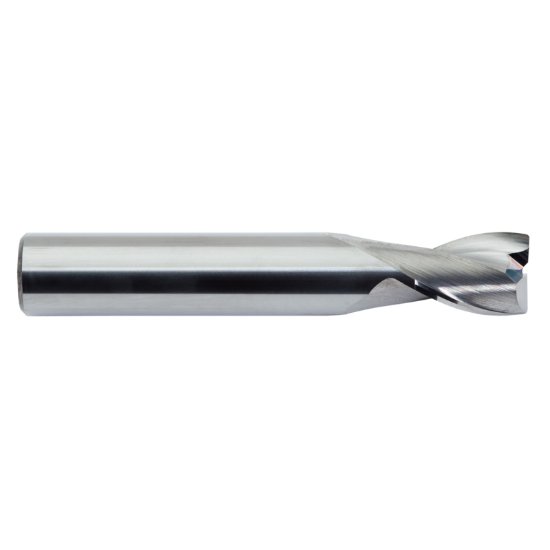

Picture of M.A. Ford 13578742 Dia 20mm SH 0.7874 LOC 0.8661 OAL5.9843 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0295 0.75mm TuffCut® AL

M.A. Ford 13578742 Dia 20mm SH 0.7874 LOC 0.8661 OAL5.9843 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0295 0.75mm TuffCut® AL

Part Number: MAF13547 0.787 x 0.787 x 0.866 x 5.984

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1240837
Vendor: Sussex Tool and Supply
$306.89
M.A. FORD 13578742 Standard Helix End Mill Carbide Uncoated Corner Radius 0.0295 0.75MM Standard Flute Flutes 2 Single End TuffCut® AL Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.7874 20.00MM
Overall Length 5.9843 152.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 2
Tool Dia 0.7874 20.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.8660 22.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0295 0.75MM
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
Only registered users can write reviews
