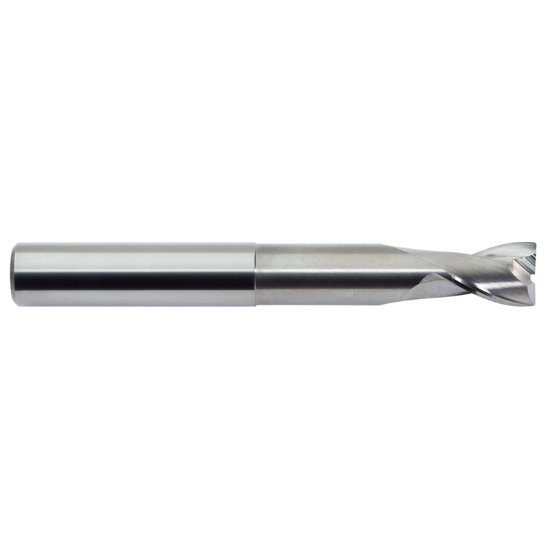

Picture of M.A. Ford 13578709N3 Dia 20mm SH 0.7874 LOC 0.8661 OAL5.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.1575 4.00mm TuffCut® AL

M.A. Ford 13578709N3 Dia 20mm SH 0.7874 LOC 0.8661 OAL5.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.1575 4.00mm TuffCut® AL

Part Number: MAF96702 0.787 x 0.787 x 0.866 x 5.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1240831
Vendor: Sussex Tool and Supply
$301.40
M.A. FORD 13578709N3 Standard Helix End Mill Carbide Uncoated Corner Radius 0.1575 4.00MM Standard Flute Flutes 2 Single End TuffCut® AL Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.7874 20.00MM
Overall Length 5.0000 127.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 2
Tool Dia 0.7874 20.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.8660 22.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.1575 4.00MM
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
Neck Length 2.5591 65.00MM
