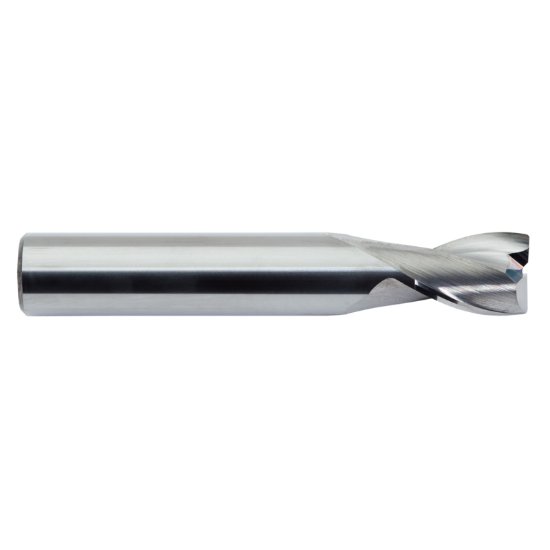

Picture of M.A. Ford 13575001NCE Dia 3/4 SH 0.7500 LOC 1.00 OAL5.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0300 0.76mm TuffCut® AL

M.A. Ford 13575001NCE Dia 3/4 SH 0.7500 LOC 1.00 OAL5.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0300 0.76mm TuffCut® AL

Part Number: MAF77009 0.750 x 0.750 x 1.000 x 5.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1240812
Vendor: Sussex Tool and Supply
$300.96
M.A. FORD 13575001NCE Standard Helix End Mill Carbide AlTiN Corner Radius 0.0300 0.76MM Standard Flute Flutes 2 Single End TuffCut® AL Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Coating ALTIN
Mach Side Connection Size 0.7500 19.05MM
Overall Length 5.0000 127.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.7500 19.05MM - 3/4
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 1.0000 25.40MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0300 0.76MM
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
Neck Length 2.8750 73.03MM
