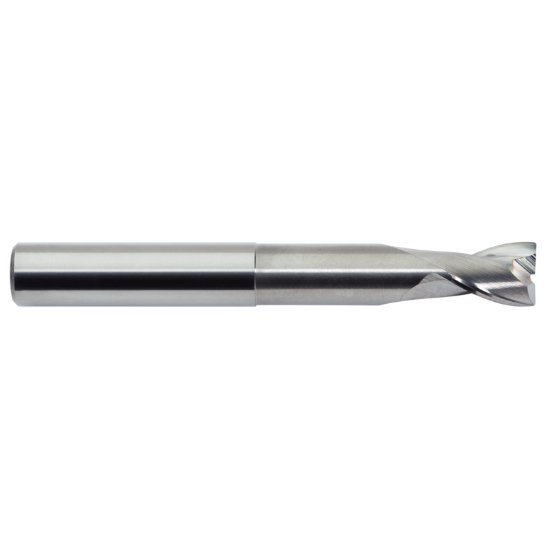

Picture of M.A. Ford 13562901N3 Dia 16mm SH 0.6299 LOC 0.7087 OAL4.6063 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0197 0.50mm TuffCut® AL

M.A. Ford 13562901N3 Dia 16mm SH 0.6299 LOC 0.7087 OAL4.6063 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0197 0.50mm TuffCut® AL

Part Number: MAF96685 0.630 x 0.630 x 0.709 x 4.606

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1240781
Vendor: Sussex Tool and Supply
$147.48
M.A. FORD 13562901N3 Standard Helix End Mill Carbide Uncoated Corner Radius 0.0197 0.50MM Standard Flute Flutes 2 Single End TuffCut® AL Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.6299 16.00MM
Overall Length 4.6063 117.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.6299 16.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.7087 18.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0197 0.50MM
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
Neck Length 2.0866 53.00MM
