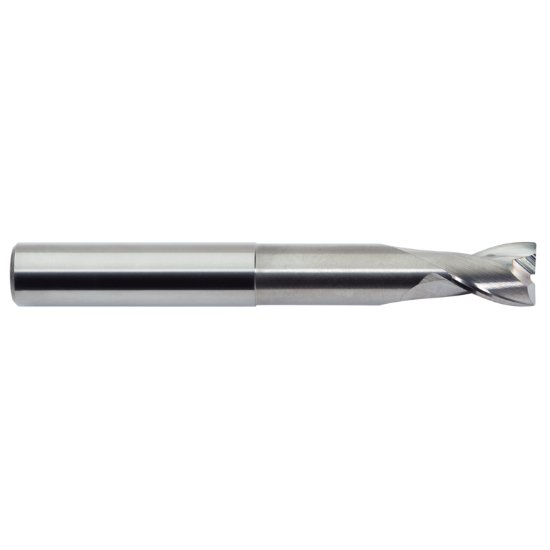

Picture of M.A. Ford 13562501N Dia 5/8 SH 0.6250 LOC 0.7500 OAL4.6250 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0250 0.64mm TuffCut® AL

M.A. Ford 13562501N Dia 5/8 SH 0.6250 LOC 0.7500 OAL4.6250 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius0.0250 0.64mm TuffCut® AL

Part Number: MAF13548 0.625 x 0.625 x 0.750 x 4.625

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1240778
Vendor: Sussex Tool and Supply
$147.48
M.A. FORD 13562501N Standard Helix End Mill Carbide Uncoated Corner Radius 0.0250 0.64MM Standard Flute Flutes 2 Single End TuffCut® AL Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.6250 15.88MM
Overall Length 4.6250 117.48MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.6250 15.88MM - 5/8
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.7500 19.05MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0250 0.64MM
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
Neck Length 2.5000 63.50MM
